You light up my heart

If you’ll indulge me for just a moment, I want to talk about something which isn’t related to zombies, but is about electronics and my attempts to get creative.

With the failure of the battery monitor project, I was determined to end the day having actually achieved something, so I decided to take a look at my Circuit Stickers Starter Kit.

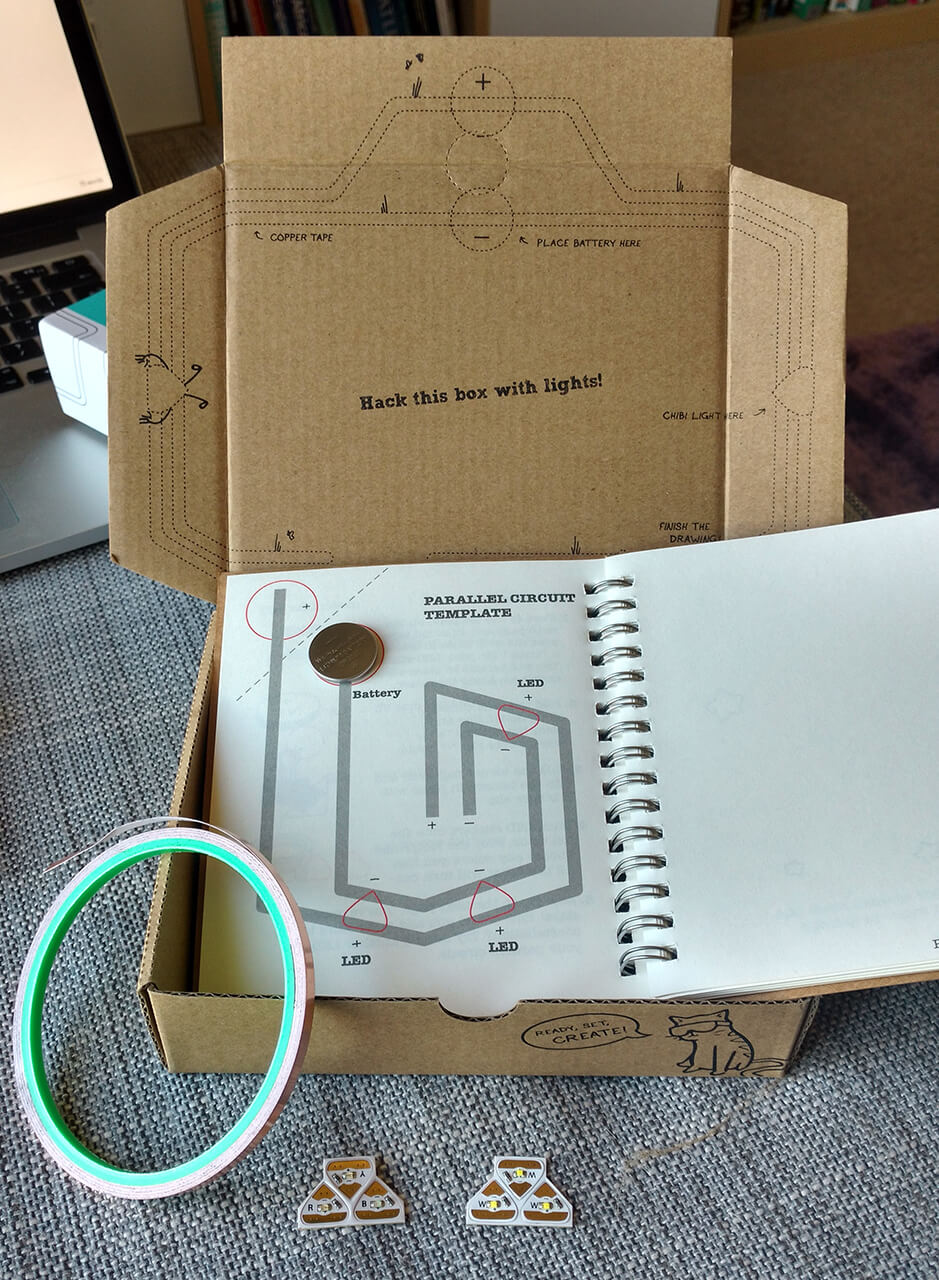

Upon opening the kit I was presented with a cute diagram inviting me to “hack this box with lights”. Further investigation revealed a Sketchbook, 12 LED stickers of different colours, 5 meters of copper tape, and a couple of coin cell batteries.

The sketchbook is nicely designed instruction manual which lets you use its pages as a template for teaching the basics of electronics. I was really tempted to complete the tasks contained within it as they looked pretty fun (and can see myself doing it with my niece when she’s a bit older), but in this particular instance I didn’t want to waste the limited resources I had, so instead reached for a heart-shaped slate which I purchased from Hobbycraft a couple months prior.

The plan had always been to add some LEDs to it in one way or another, either via drilled holes with LEDs stuck through them, or using some circuit paint. But on this occasion, the tools at my disposal were copper tape and stickers, so that’s what I used.

The design is based on a pattern I created a few years ago, which I settled on after some paper-drawn prototypes, and a test pattern created with unstuck strips of tape.

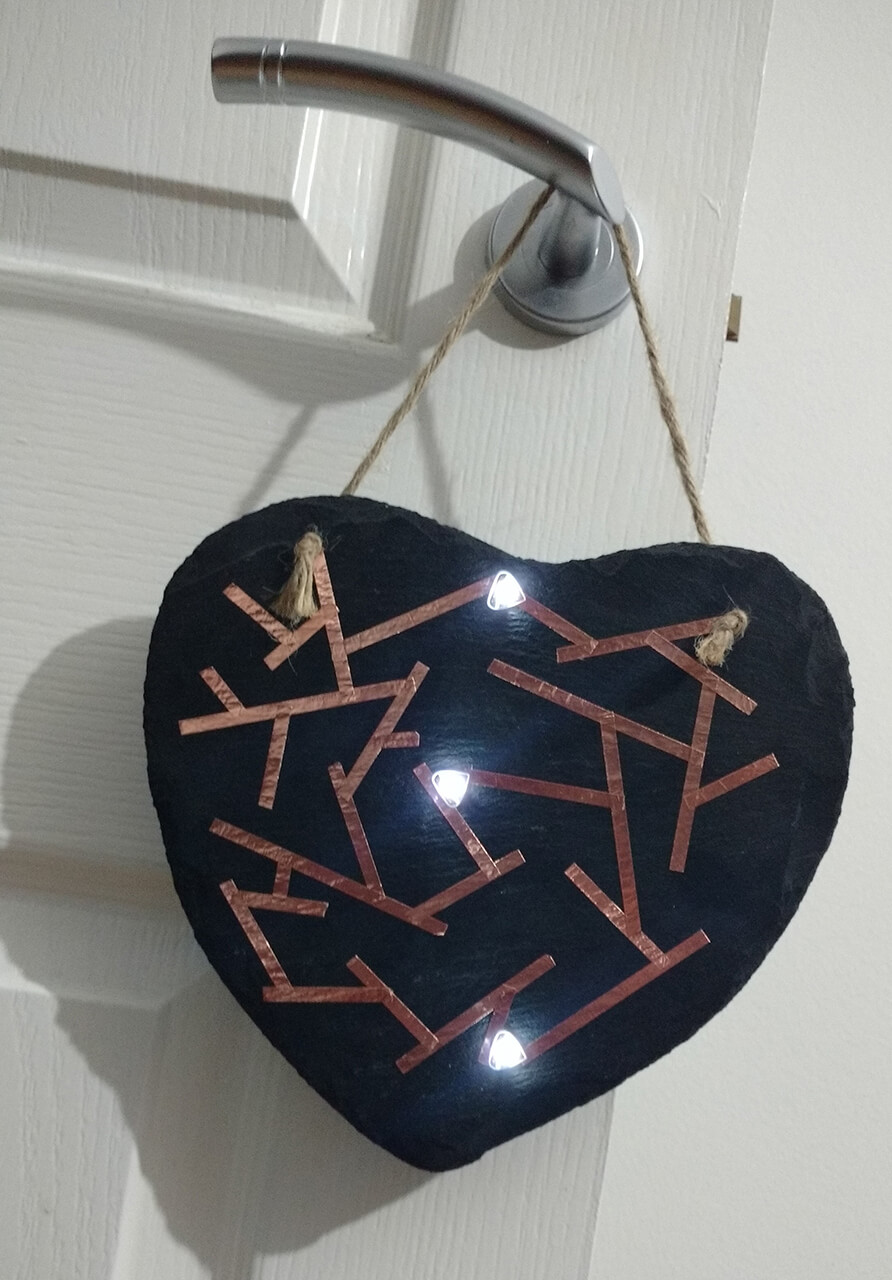

The battery for the LEDs is stuck to the back, with positive side coming through the left string hole, and the negative one going though the one on the right. The LEDs bridge the gap between them, completing the circuit.

It’s a bit flaky, with the LEDs flicking on occasion, but I think this is due to a loose connection in one of the holes, and should be easy to fix with a tiny bit of solder.

I think I’d like to get another couple of heart slates, and try doing something similar to the two ideas mentioned above, but for now, I’m happy enough with this.
